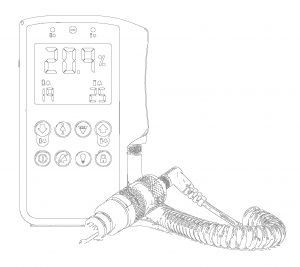

Oxygen Analyzer, handheld, Electrochem

This oxygen analyzer is intended for continuous monitoring of the concentration of

oxygen being delivered to patients ranging from newborns to adults.

It can be used in the hospital and sub-acute settings

General description:

Oxygen Analyzer, Handheld, Electrochem

Technical Specifications:

Measurement Range 0% to 100%

Display Resolution 0.10%

Response Time 90% of final value < 15 seconds at 23 °C

Warm-up Time None required

Cable Length 10 ft when fully extended

Calibration Reminder One week timer; restarted every calibration

Weight < 1.5 lbs (680 grams)

Min/Max Storage Temperature -15 °C to 50 °C (5 °F to 122 °F)

Operating Temperature 15 °C to 40 °C (59 °F to 104 °F)

Dimensions 3.6˝x 5.8˝x 1.2˝(91 mm x 147 mm x 30 mm)

Power Requirements Four (4) AA alkaline batteries (4 x 1.5 volts)

Alarm System High/low alarm system, flashing yellow LEDs, nominal 975 Hz audio buzzer

Linearity +/- 1% of full-scale at constant temperature and pressure

Accuracy +/- 1% of full-scale at constant temperature, relative humidity, and pressure

Minimal Quality Standards

ISO 13485

DIRECTIVE 93/42/EEC or FDA

USER TRAINING REQUIREMENTS:

The User Manual supplied with the device details all operation procedures for user.

Warranty:

2 years
